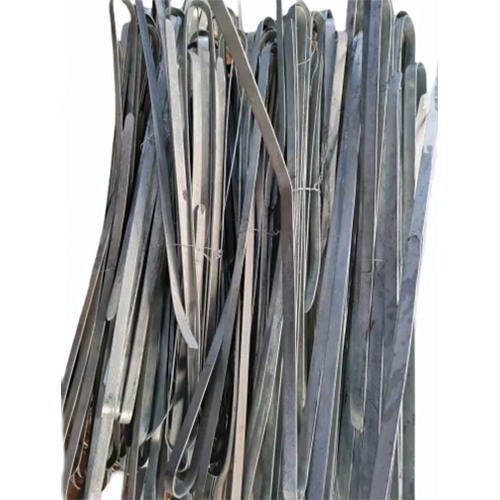

GI Earthing Strip

Name: GI Earthing Strip
Brand: Nst Steel Tubes Pvt. Ltd.

Get a Price/Quote

MOQ : 100 Kilograms

GI Earthing Strip Specification

Material Composition %
Iron 98%, Carbon 0.22%, Zinc Coating as per IS 2629

Coating Type
Hot Dip Galvanized

Recyclable
Yes

Diameter
N/A (Strip Form)

Corrosion Resistant
Yes, due to galvanization

Product Form
Flat Strip

Tensile Strength
410 MPa

Hardness
120-160 HB

Heat Resistance
Yes

Size
20 mm to 75 mm width; 3 mm to 12 mm thickness; Custom lengths

Product Name
GI Earthing Strip

Steel Type
Mild Steel (MS) - Galvanized

Steel Product Type
Earthing Strip

Grade
IS 2062, Fe 410

Thickness
3 mm to 12 mm (standard 6 mm)

Shape
Rectangular/Flat Strip

Steel Standard
IS 2062 / IS 2629

Surface
Galvanized (Zinc Coated)

Composition
Iron with zinc coating (Hot Dip Galvanized), low carbon content

Application
Earthing protection systems, power distribution, industrial grounding, lightning protection

Dimension (L*W*H)
40 mm (W) x 6 mm (T) x Custom Length

Weight
Varies as per length and dimensions, approx. 1.9 kg/m for 40mm x 6mm

Color
Silver/Grey

Material Grade
IS 2062 Gr A/B

Finish Type
Smooth, Zinc Coated

Usage
Earthing for safety from electrical faults

Zinc Coating Thickness
80-100 Microns (as per IS 2629)

Current Carrying Capacity
Depends on dimensions, approx. 200-400A for standard strips

Ambient Working Temperature
-10C to 60C

Storage Guidelines
Store in dry, covered area to avoid white rust formation

Installation Type
Horizontal or Vertical embedding

Customization
Available as per customer requirements

Electrical Conductivity
Excellent due to low carbon MS core

Fire Resistance
Non-flammable

Package Type
Bundles wrapped with steel straps

About GI Earthing Strip

GI (Galvanized Iron) earthing strips are flat steel strips coated with zinc, used for grounding (earthing) in electrical systems. They provide a safe path for fault current to flow into the ground, protecting people and equipment from electric shock. The zinc coating protects the strip from rust and corrosion, making it suitable for outdoor and underground use. GI earthing strips are widely used in buildings, power systems, substations, and industrial installations. They are strong, durable, and ensure long-lasting electrical safety.
