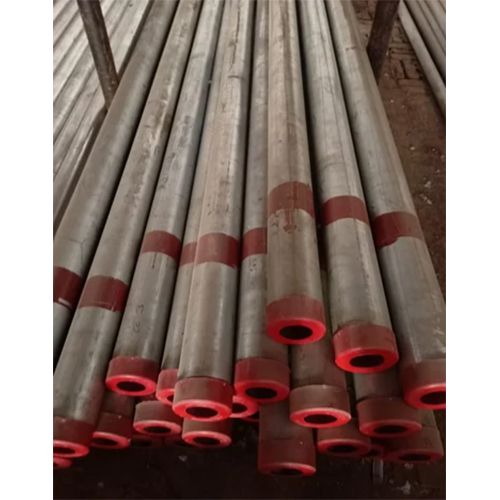

Jindal GI Pipe

Name: Jindal GI Pipe
Brand: Nst Steel Tubes Pvt. Ltd.

Get a Price/Quote

MOQ : 100 Kilograms

Jindal GI Pipe Specification

Tolerance
1% on dimensions

Flexibility
Rigid

Coating Type
Zinc Coating 210 g/m2 (min)

Bend Radius
Not Recommended for Bending

Tensile Strength
330 - 410 MPa

Yield Strength
195 - 240 MPa

Diameter
15 mm to 300 mm

Connection Type
Socket/Plain-End/Threaded

Thread Type
BSP/NPT (where applicable)

Temperature Range
-10C to +100C

Sealing Type
Threaded/Socket Joint with Sealant

Product Type
Galvanized Iron (GI) Pipe

Material
Mild Steel

Connection
Plain/Threaded

Shape
Round

Standard
IS 1239 / IS 3589

Surface Treatment
Hot-dip Galvanized

Outer Diameter
15 mm to 300 mm

Section Shape
Circular

Length
6 meters (Custom length available)

Thickness
2 mm to 6 mm

Color
Silver

Usage
Plumbing, Water Supply, Structural, Industrial

Rated Pressure
Up to 15 kg/cm2

Application
Water Lines, Gas Lines, Fencing, Structural Support

Material Grade
IS 1239, IS 3589 Gr. A/B

Weight
Varies as per size and thickness (Standard weight as per IS)

End Finishing
Bevelled, Plain, or Threaded as required

Corrosion Resistance
High, due to thick zinc coating

Packing
Bundles with protective plastic caps

Weld Type
Electric Resistance Welded (ERW) or Seamless

Test Pressure
As per IS 1239/IS 3589 Standards

Storage Instructions
Store in dry, covered spaces to prevent white rust formation

About Jindal GI Pipe

Jindal GI pipes are high-quality galvanized iron pipes manufactured by Jindal Industries Limited. These pipes are coated with a layer of zinc, which protects them from rust and corrosion. Jindal GI pipes are known for their strength, durability, and long service life. They are widely used in water supply systems, plumbing, agriculture, construction, and industrial applications. These pipes can withstand pressure and harsh environmental conditions, making them reliable for both indoor and outdoor use.
