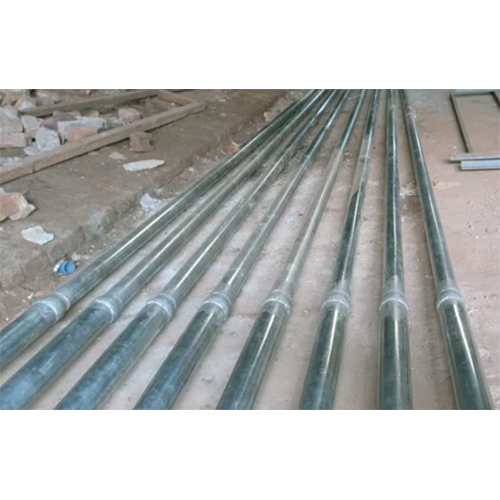

Swaged Tubular Poles

Name: Swaged Tubular Poles
Brand: Nst Steel Tubes Pvt. Ltd.

Get a Price/Quote

MOQ : 100 Kilograms

Swaged Tubular Poles Specification

Pole Type
Swaged Tubular Pole

Mounting Type
Ground Mounted (Directly Embedded/With Base Plate)

Features
High Tensile Strength, Corrosion Resistant, Maintenance Free, Durable

Usage & Applications
Street Lighting, Outdoor Illumination, Area Lighting, Utility Lighting

Thickness
1.8 mm to 4 mm (Dependent on pole height and standard)

Surface Finish
Hot Dip Galvanized / Painted Coating

Weight
Varies as per length and specification (approx. 20 kg - 70 kg)

Product Type
Swaged Tubular Lighting Pole

Material
Mild Steel (MS) or Galvanized Iron (GI)

Length
3 to 12 meters

Voltage
Suitable for standard street lighting voltage (110V/220V/440V)

Lighting
Compatible with LED/Sodium Vapor/Mercury Lamps

Input Voltage
110V / 220V / 440V AC

Working Temperature
-40C to +55C

Socket
ISI Standardized Lamp Socket

Color
Metallic Grey / Silver (Galvanized)

Height
3 to 12 meters

Welding
Automatic Seam Welded Joints

Wind Resistance
Designed for wind pressure as per IS:875 Part 3

Top Diameter
40 mm to 76 mm

Base Plate Size
As per IS:2713 or client specification

Bottom Diameter
76 mm to 165 mm

Protection Class
IP65 (With Suitable Lighting Fixtures)

Pole Sections
Generally 1 to 3 sections based on height

Packing Type
Standard Export Packing, Wrapped or Bundled

About Swaged Tubular Poles

Swaged tubular poles are steel poles made by joining multiple pipe sections of different diameters, where the upper section is reduced (swaged) to fit into the lower section. This design provides high strength, stability, and a smooth tapered appearance. These poles are widely used for street lighting, electric transmission, and distribution lines. Swaged tubular poles are strong, durable, and capable of withstanding wind load and harsh weather conditions. They are often galvanized to protect against rust and increase their lifespan.
